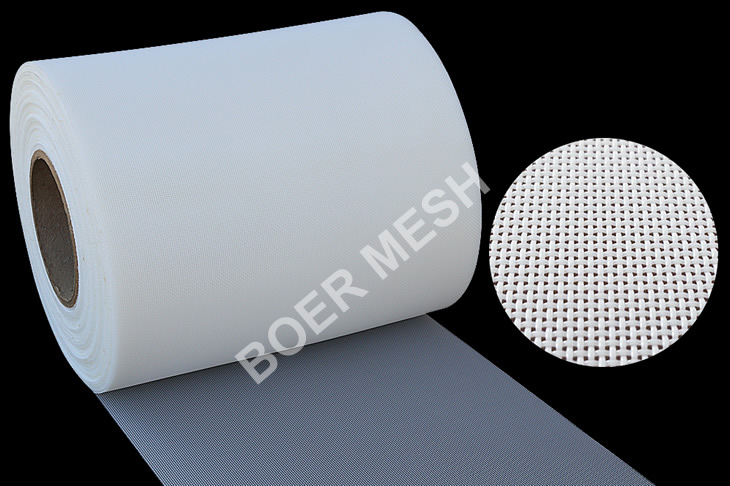

Polyester Filtration Mesh

Specification:20 mesh-380 mesh

Mesh opening:32-900 micron

Diameter:30-350 micron

Width:1-3.3 M

Length:30-70M,or produce as your requirement

Application: Liquid and solid filtration in food, petroleum ,chemicals ,automobile and other industries

Mesh Count Inch	Yarn diameter Microns	Mesh Openning Microns	Open Area %	Thickness Microns	Weight g/㎡	Material
20	350	900	51	660	251	PET
25	300	700	49	570	231	PET
25	250	750	56	450	160	PET
30	300	530	40	580	277	PET
30	250	580	48	460	192	PET
30	150	680	67	260	69	PET
38	250	420	40	470	240	PET
40	200	425	46	380	164	PET
50	150	350	49	260	115	PET
50	180	420	70	140	33	PET
50	110	400	64	180	51	PET
60	150	266	42	280	138	PET
60	120	340	67	220	88	PET
70	120	240	45	230	103	PET
70	80	280	62	150	46	PET
80	80	230	54	150	52	PET
80	100	210	45	180	82	PET
90	100	180	42	180	92	PET
100	60	194	58	190	95	PET
100	100	150	36	190	103	PET
110	80	150	42	155	71	PET
120	55	160	57	96	36	PET
120	64	150	50	120	48	PET
120	71	140	43	130	59	PET
135	55	135	51	97	40	PET
135	64	125	44	122	54	PET
150	55	115	46	99	45	PET
150	64	105	38	123	61	PET
164	64	90	33	125	66	PET
164	55	100	41	100	48	PET
180	50	91	41	85	41	PET
195	55	75	33	105	58	PET
203	45	80	41	80	41	PET
230	39	70	40	68	34	PET
230	45	65	34	82	46	PET
256	39	60	36	69	38	PET
280	35	56	38	62	34	PET
280	39	52	33	70	42	PET
306	35	48	33	63	37	PET
305	39	44	28	72	46	PET
355	35	36	25	62	43	PET
380	35	32	23	64	46	PET
