Polyester Printing Screen

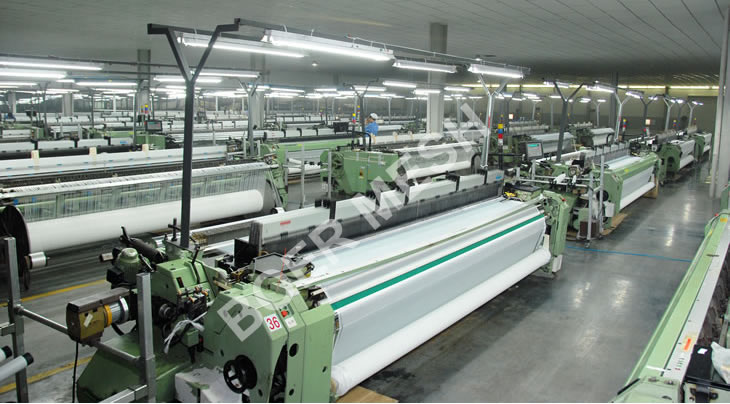

HEBEI BOER MESH CO.,LTD. Which covers an area about 56000㎡ is specializing in producing Polyester Monofilament Mesh .Our company imported the most advanced polyester screen production line in the world, including 39 set of P7100—S330 projectile looms from Switzerland, intelligent electronic warping machine, and our company owns the internal first-class test equipment and a group of technician and workers specialized trained by the Switzerland experts.

Our quality has been successfully approved by the FDA . Our polyester screen products are of high quality and precision with a wide range from 25mesh to 420mesh, annual output is up to 1,500,000 m². Our products are extensively used for screen printing, plate making in electronic, textile, ceramics industry etc.

Detail Specification of Polyester Screen Mesh
Specification	Mesh Count	Thread Dia.	Aperture	Openning	Thickness	Theoretica Ink Volume	Tensile Strength
T	mesh/inch	micron	micron	%	micron	C㎡/㎡	n/cm
10-250	25	250	740	53	465	246	60
16-200	40	200	435	47	420	189	48
20-140	50	140	340	46	280	129	52
24-100	60	100	316	58	190	109	48
24-120	60	120	300	51	210	105	42
32-100	80	100	200	43	160	69	42
36-100	90	100	178	41	175	72	42
39-55	100	55	201	62	100	62	30
39-80	100	80	172	46	142	65	42
43-80	110	80	150	41	130	55	35
48-70	120	70	135	41	115	46	32
53-55	135	55	134	50	105	53	34
54-64	137	64	115	39	102	40	30
59-55	150	55	100	40	93	39	32
64-55	160	55	101	42	105	44	30
64-64	160	64	90	32	106	34	35
72-48	180	48	94	46	80	37	32
72-55	180	55	75	29	92	27	32
77-55	195	55	70	25	88	24	29
80-48	200	48	78	30	84	24	29
80-55	200	55	70	25	88	24	29
90-48	230	48	55	25	78	20	33
100-40	250	40	58	32	65	21	29
110-40	280	40	48	27	65	17	30
120-34	300	34	45	30	55	16	30
120-40	300	40	40	20	55	16	29
140-31	350	31	35	26	48	13	27
140-34	350	34	30	20	55	10	30
150-31	380	31	32	23	47	10	28
150-34	380	34	30	20	69	10	30
165-31	420	31	25	17	49	8	28
