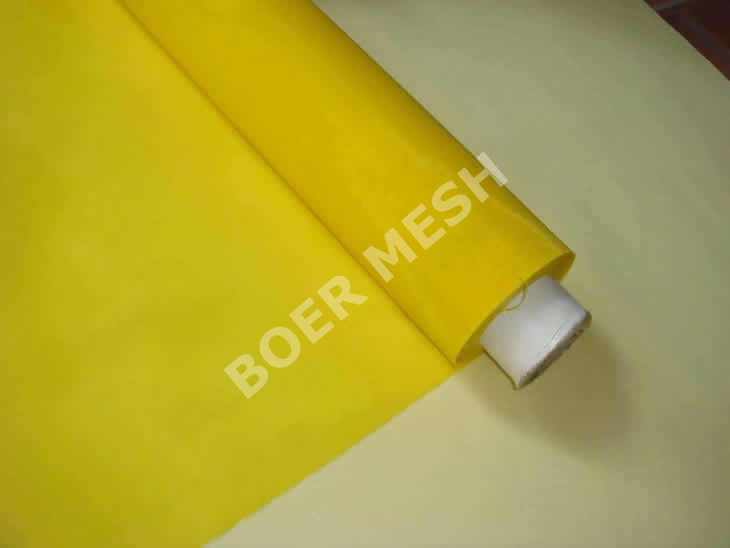

Multifilament Polyester Screen Fabric

TENSILE POLYESTER MESH FOR SILK SCREEN FILTER FABRIC

Stretchable polyester mesh thin fabric is plain woven monofilament fabric suitable for fine silk printing. Also called polyamide printing screen, ink printing mesh or stationery ink filter fabric. Made with imported weaving looms, the monofilament mesh has a general mesh count ranges from 80 to 420mesh, inch 7-165T, mesh opening ranges from 25 to 1100um. The roll width varies: 1150mm,1270mm,1580mm, 1650mm, 2600mm, 3200mm, 3650mm(Max). Our polyester mesh screen is widely used in electronic PCB printed circuit board, thin film technology, key pads, the printing of textile, glass, ceramics, ads, filter ink, aerospace, petrochemica, melt  filter and other high tech industries.

What is Silk Printing or Screen Printing?

Silk screening, also known as screen-printing, is a printing technique of creating images by passing ink through a porous mesh fabric. According to Wikipedia, Screen printing is a printing technique whereby a mesh is used to transfer ink onto a substrate, except in areas made impermeable to the ink by a blocking stencil. It is also known as silk-screen, screen, serigraphy, and serigraph printing.

Where does screen printing apply?

The silk screening print technique is used for many industries, including Circuit Boards Printing, Solar Cell Printing, Textile Printing, Thick film Printing and Key pads Printing, Ceramics Printing and other industries.

Our silk-screening process with polyester fabric ensues a high resolution and quality finish. Silk screen printing polyester mesh fabrics are known for its excellent dimensional stability and the narrow tolerance of its overall fabric thickness. It can be used for a long time service providing uniform and accurate aperture widths.

Why Polyester Mesh for Screen Printing?

Polyester mesh has minimum fabric thickness, excellent tensile strength and stretching performance allowing the smooth ink flow. Monofilament polyester or polyamide mesh can guarantee accurate registration, precision ink deposit control and high abrasion resistance. As replacement for silk fabric, this synthetic dacron netting will not shrink, stretch or sag. In addition, our screen is dimensionally stable and highly-tensioned, so that the screen printing screens can be stretched and printed with a minimum off-contact distance. This capability ensures the most accurate and consistent screen printing results.
